Specifications

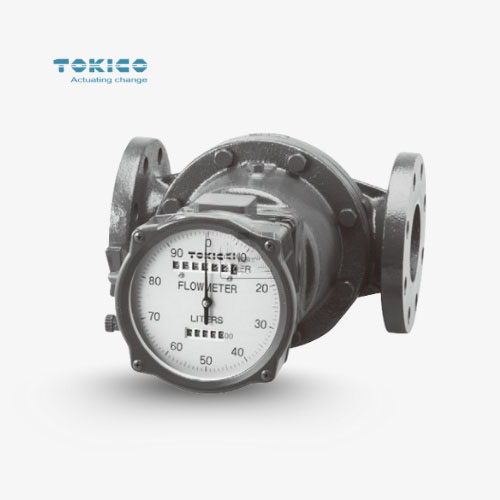

- FRP1051BAA-04X2-X
- Size : 4 inch ( 100 mm )
- Accuracy: ±0.5%
- Max. working pressure : 1MPa
- Hydraulic test pressure : 2MPa
- Max. Working Temperature
Kerosene, diesel/light oil : 50℃
A,B,C heavy oil : 100℃
with fin : 150℃ - Flange Rating :JIS10K FF
- Material Body : FC250 (Cast iron)
- Material Rotor : FC (Cast iron)
- Flow range :
Intermittent
Kerosene (0.9 ～ 2mPa・s) : 16 ～ 120 m3/h
Light oil (2 ～ 5mPa・s) :12 ～ 130 m3/h
A,B Heavy oil (5 ～ 150mPa・s):4 ～ 130 m3/h
C Heavy oil (150 ～ 500mPa・s): 4 ～ 120 m3/h
Continuous
Kerosene (0.9 ～ 2mPa・s) : 16 ～ 85 m3/h
Light oil (2 ～ 5mPa・s) : 12 ～ 120 m3/h
A,B Heavy oil (5 ～ 150mPa・s):4 ～ 120 m3/h
C Heavy oil (150 ～ 500mPa・s): 4 ～ 85 m3/h - Counter Unit :Totalizing counter (7 digits),
Reset conter (5 digits) - weight :100 kg
