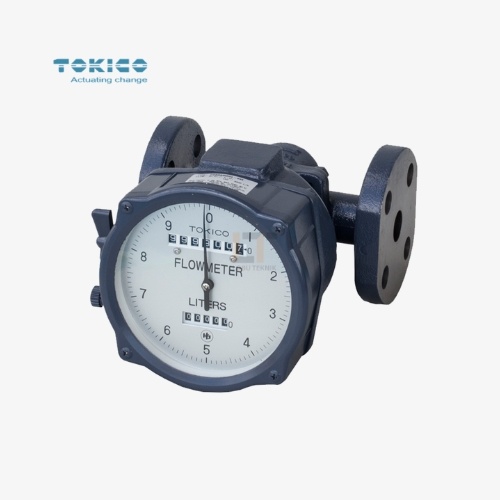

Flowmeter Tokico Size 1/2inch

Deskripsi

Specifications

• FGBB423BAL- 04X
• Size : 1/2 inch ( 15 mm )
• Accuracy: ±0.5%
• Max. working pressure : 1MPa
• Hydraulic test pressure : 2MPa
• Max. Working Temperature
  -Kerosene, diesel/light oil,A heavy oil : 80℃
• Flange Rating :JIS10K FF
• Material Body : FC250 (Cast iron)
• Material Rotor : Phenol resin
•  Flow range :
  – Standard
  Kerosene (1.5mPa・s) : 70 ～ 200 L/h
  Diesel, Light oil (5mPa・s) : 40 ～ 200 L/h
  A Heavy oil (10mPa・s ～) : 20 ～ 200 L/h
• Counter Unit :
  Totalizing counter (7 digits),
  Reset conter (5 digits)
• weight : 6 kg
