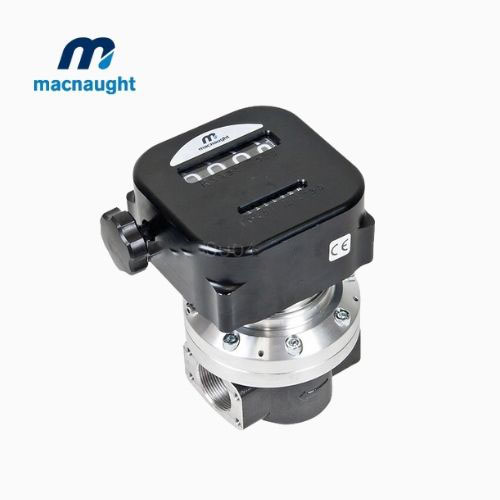

F025-3S4 – 1″ Mechanical Flow Meter with Heavy-Duty Display
The M Series 1″ Mechanical Flow Meter is designed for high-accuracy liquid flow measurement in demanding industrial environments. Built with a rugged cast aluminum body and FKM (Viton) seals, it delivers long-lasting performance even under high pressure and temperature conditions.
Performance Specifications
- Flow Range: 6 – 120 L/min (1.59 – 31.70 GPM)
- Accuracy: ±1.00% of reading
- Repeatability: ±0.03%
- Temperature Range: Up to 80 °C (176 °F)
- Calibration: 1-point factory calibration (multi-point optional)
Key Features
- Heavy-duty mechanical display for reliable, power-free operation
- Compact footprint — no flow conditioning required
- Cast aluminum construction ensures durability in harsh applications
- FKM (Viton) seals for superior chemical and temperature resistance
- Suitable for a wide range of liquids including fuels, oils, and chemicals
